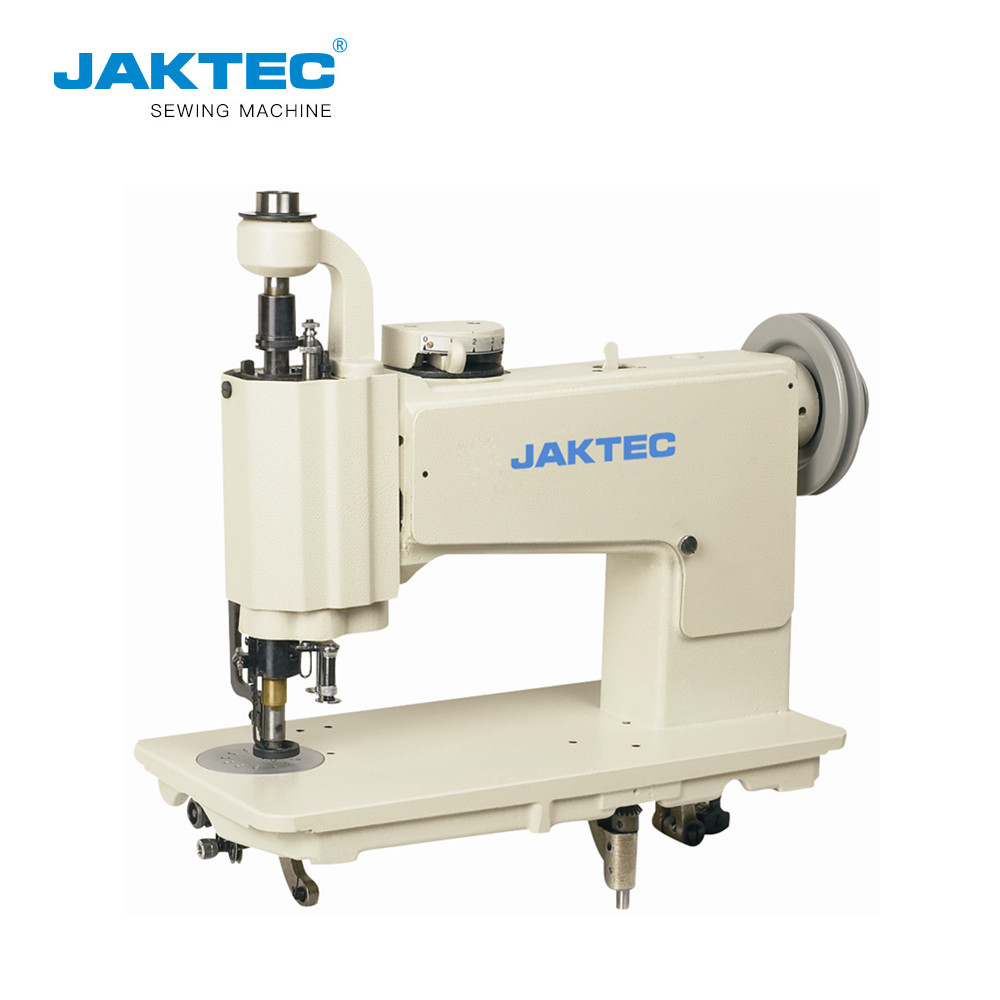

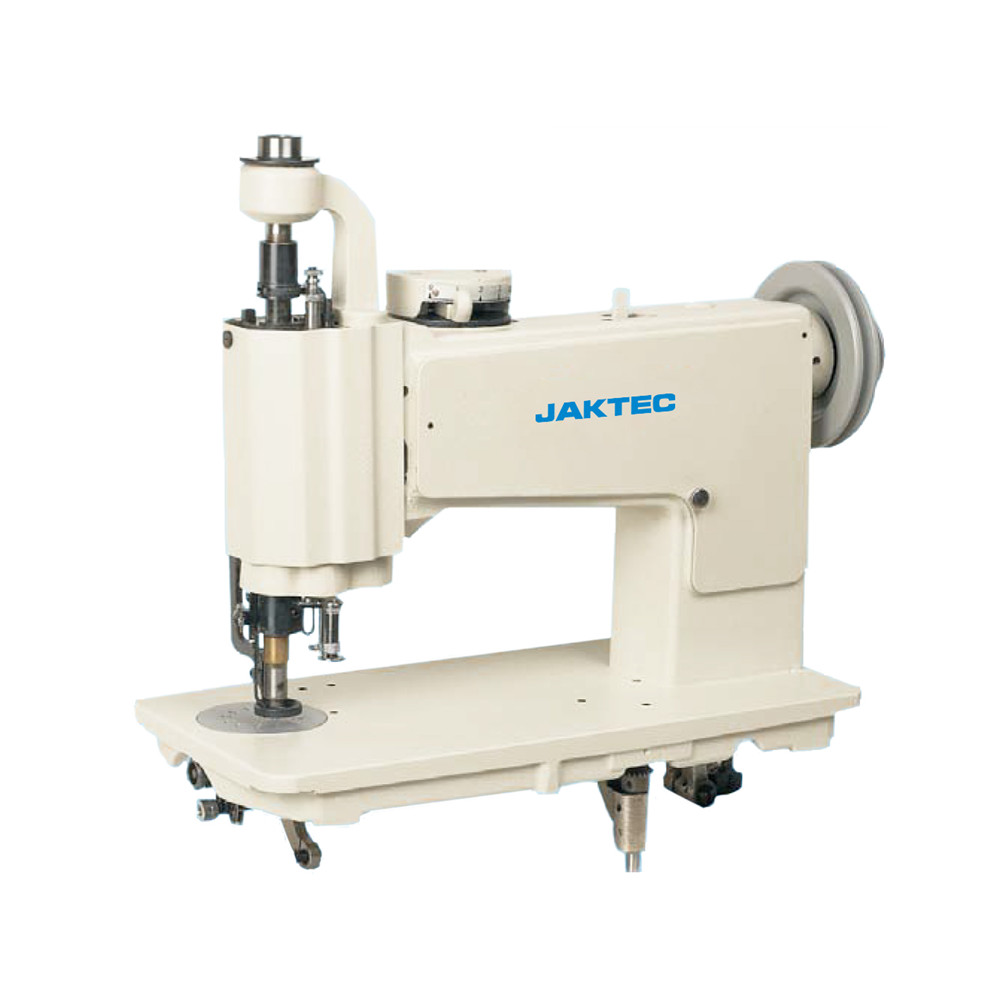

SINGLE NEEDLE CHAINSTITCH EMBROIDERY MACHINE GY10-2

This machine differs from the traditional type machine length ways or stitch to send to anticipate horizontally, it adopts the any direction toward type to send to anticipate the organization, so used...

GY10-2

Single Needle Chainstitch Embroidery Machine


APPLICATIONS:

Ideal for sewing various sports shoe, cotton shoes, bags, leather products, cap and-wig, etc.

FEATURES:

1. The full-rotary horizontal-shaft hook and the slide-type thread take-up lever, a well-tensed and beautiful finished seam is achieved with consistency.

2. The roller presser design is suitable to sew the abnormal material, such as various leather and light materials which can keep the seam smooth and even, without crease.

3. Reverse stitching is available with an easy level operation.

4. Change roller presser foot to flat presser foot gauge set, so that can be suitable for hats and wigs sewing.


Product Description



GY10-2


Embroidery machine


Model:  GY10-1    2 kind of stitches ( chain , moss stitch )

Model:  GY10-2    5 kind of stitches ( chain,  moss , taping , braiding and ray stitch )

Production Description

     GY10-2 has five kinds of embroidery function ( named the chain embroiders,towel embroidery, the dish takes to embroider , wrap the rope to embroider with centipede )

     This machine differs from the traditional type machine length ways or stitch to send to anticipate horizontally, it adopts the any direction toward type to send to anticipate the organization, so used for the simple hand to shake the operation , can immediately embroider a style and pattern which you request.

     It is applicable to the decoration of towel, bedspread, shirt, coar, curtain etc.

Model name
GY10-2
Application
Embroidering on light to medium heavy material
Max. sewing speed
800 sti/min
Feeding
Any direction feeding
Stitch length
Max: 5mm
Dog feet move height
7mm
Range for needle bar
14mm
Suitable needle
137x1TR   137x1SM
N.W./G.W.
30KG/33 kgs
Measurement
50*51*31.5CM
Detailed Images
The Stitch

  • USB Port - No
  • Wiper Function - No
  • LED Pointer - No

This machine differs from the traditional type machine length ways or stitch to send to anticipate horizontally, it adopts the any direction toward type to send to anticipate the organization, so used for the simple hand to shake the operation.

Features Functions Overview
Model GY10-2
Number of Needle 137x1TR 137x1SM
Embroidery Speed 800 spm
Built in Design No
Built in Font No
On Screen Editting No
USB Port No
Wiper Function No
LED Pointer No
iEye Camera No
Frames Included Na
Bobbin Type No
Needle Threader No
Sewing Light No
Start Stop Button No
Thread Tension Control Yes
Quick Set Bobbin NO
F.A.S.T. Bobbin Winding No
Touch Panel LCD No
LCD Size No
Embroidery Area No
Thread Cutter No
Software Upgrade No
Wide Table No
Power 220V
Weight 30KG/33 kg
Warranty 1
Brochure Download Brochure
