SINGLE HEAD COMMERCIAL EMBROIDERY MACHINES TC SERIES-8S-7S

Using advanced network technology, users can link together as many Ricoma machines as desired to an extremely flexible production system.

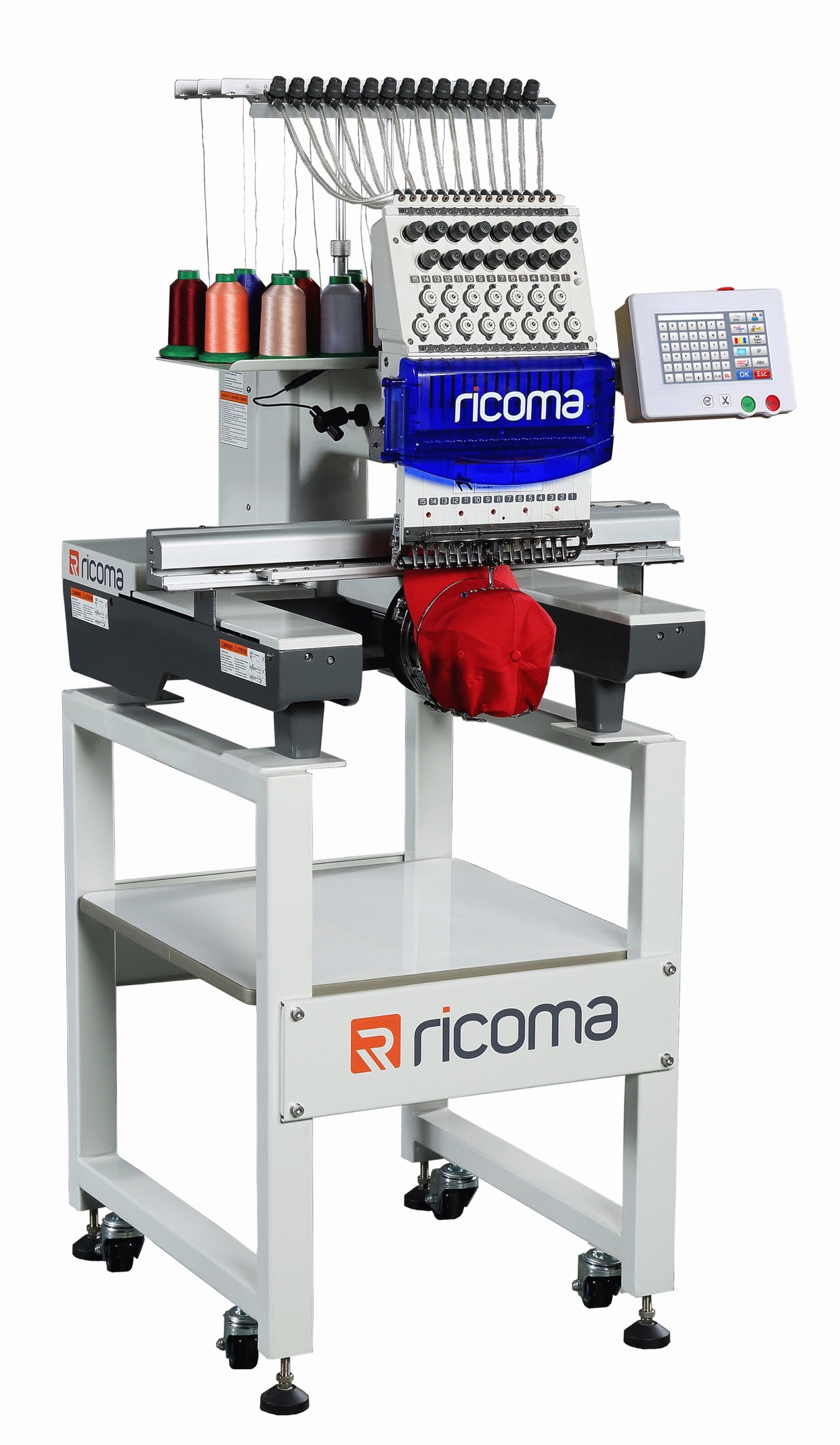

RCM-1501TC-8S / 7S

Single Head Commercial Embroidery Machines

Main Features:

12 or 15 needles, one head, suitable for flat bed embroidery, cap/hat embroidery, finished garments embroidery and more

Perfect for home and commercial embroidery

Max. Embroidery Area: 50cm x 35cm

(Model RCM-1501TC-7S-EW4814 120cm x 35cm)

Automatic thread trimmer

Max. Speed 1200 SPM

270° Cap Embroidery System

USB input or direct transmission from PC via LAN or optional via Wi-Fi

Networkable and Wi-Fi capable

Auto color change

Thread break detection

Pre-sew design trace capable

Automatic memory retention

Servo motor 150W - lowest power consumption in the industry!

Built-in universal power supply, 110V/60Hz and 220V/50Hz self adaptable worldwide

DC36V micro-step motor for X & Y axis driving to ensure low noise and less vibration

Light weight with 90 kilograms, so it can be easily moved around

Heavy duty steel stand with wheels to ensure both stability and mobility

Environment friendly packaging

Included laser trace device

Emergency Stop

Embroidery Example
Embroidery Example
Embroidery Example

Network Capability Ready

Using advanced network technology, users can link together as many Ricoma machines as desired to an extremely flexible production system. Embroider the same design on all of your machines, or embroider different designs on individual machines simultaneously.

Network ready

Touch Screen Control Panel TC-7S

  • Multi-languages available in English, Chinese, Spanish, Portuguese, Turkish, Dutch, French, German, Russian, Vietnamese, Thai, Arabic and more
  • User friendly operation interface with useful functions that make it easy to operate and increase efficiency
  • Machine reads multiple design formats, such as DST, DSB and more
  • Preset 8 sizes of frames to avoid hitting frame
  • When setting color change sequence, operator is able to add appliqué, sequin, boring or cording. There is no need to change it in the parameters page
  • Built in button form 172° degrees to 196° under manual color change mode, a great help for machine maintenance
  • Frame offset and frame outlining available for easy appliqué embroidery
  • High Definition true color 7” LCD Touch Screen
  • Multi-angle rotational and adjustable control panel bracket for a better view
  • Recessed USB port to protect USB flash drive
  • New ergonomic touch screen allows easy and comfortable operating by right hand thumb
  • Main operation area located on the right side of interface, convenient for right thumb operation
  • One step trace button directly on the main screen
  • External 100° button and trimming button

Touch Screen control Panel TC-8S

  • User-friendly interface
  • New ergonomic touch screen allows for easy and comfortable operation with right-hand thumb
  • Preset hoop parameters designed to avoid hitting hoops
  • Multi-angle, rotatable and adjustable control panel bracket allows for better visibility
  • Pre-sew design trace capable
  • Automatic color change
  • Optional camera positioning device
  • High Definition true color 8” LCD Touch Screen
  • Built-in factory mode, standardizing outgoing quality control process
  • Built-in fle folder management
  • Screenshot function
  • 3D design view for better visibility
  • Built in button form 172° degrees to 196° under manual color change mode, a great help for machine maintenance
  • Frame offset and frame outlining available for easy appliqué embroidery
  • Machine parameters can be exported and imported for easy maintenance
  • One step trace button directly on the main screen
  • External 100° button and trimming button
  • Multiple languages: English, Chinese, Spanish, Portuguese, Turkish, Dutch, French, German, Russian, Vietnamese, Thai, Arabic and more
  • Laser pointer is activated when tracing design
  • New mode for needle path calculation, optimizing embroidery quality

Models

RCM-1201TC-7S (nicht am Lager)

Needles
12

Heads
1

Net Weight
90kg

Embroidery Area
50cm x 35cm

Size
74cm x 86cm x 158cm

RCM-1501TC-7S

Needles
15

Heads
1

Net Weight
90kg

Embroidery Area
50cm x 35cm

Size
74cm x 86cm x 158cm


RCM-1501TC-7S-EW4814

Needles
15

Heads
1

Net Weight
90kg

Embroidery Area
120cm x 35cm

Size
74cm x 86cm x 158cm


 This model contains the optional Embroidery Field Extension

RCM-1201TC-8S (nicht am Lager)

Needles
12

Heads
1

Net Weight
90kg

Embroidery Area
50cm x 35cm

Size
74cm x 86cm x 158cm

RCM-1501TC-8S

Needles
15

Heads
1

Net Weight
90kg

Embroidery Area
50cm x 35cm

Size
74cm x 86cm x 158cm


RCM-1501TC-8S-EW4814

Needles
15

Heads
1

Net Weight
90kg

Embroidery Area
120cm x 35cm

Size
74cm x 86cm x 158cm

 PDF Ricoma TC Series 10,5 MB


Included Accessories


Frames

  • 2 x Round Hoop 9 cm
  • 2 x Round Hoop 12 cm
  • 2 x Round Hoop 15 cm
  • 2 x Round Hoop 20 cm
  • 2 x Square Hoop 29 x 29 cm
  • 1 x Sash Frame 54 x 36 cm

Complete Cap Embroidery System

Cap Frame

2 x Cap Frame

Cap Hoop Station

1 x Cap Hoop Station

Cap Drive

1 x Cap Drive


Laser Pointer

Laser Pointer

Heavy duty steel stand with wheels

Heavy duty steel stand with wheels

Size: 70cm x 70cm x 78cm
Weight: 38kg


Embroidery Field Extension

Embroidery Field Extension

120cm x 50cm wide sewing field extension.

The model RCM-1501TC-7S-EW4814 contains this extension.
For other 15 needle machines this Embroiderx Field Extension is optional available.



  • USB Port - Yes
  • Wiper Function - Yes
  • LED Pointer - Yes

Using advanced network technology, users can link together as many Ricoma machines as desired to an extremely flexible production system.

Features Functions Overview
Model TC SERIES-8S-7S
Number of Needle 15/12
Embroidery Speed 1200 SPM
Built in Design 200
Built in Font 172° to 196°
On Screen Editting Yes
USB Port Yes
Wiper Function Yes
LED Pointer Yes
iEye Camera No
Frames Included (9cm, 3.5") (12cm, 4.7") (15cm, 5.9") (20cm, 7.9") (29cm, 12") (56 x 36cm, 22 x 14") 14")
Bobbin Type Vertical hook
Needle Threader No
Sewing Light LED
Start Stop Button Yes
Thread Tension Control Manual
Quick Set Bobbin External
F.A.S.T. Bobbin Winding No
Touch Panel LCD LCD Colour
LCD Size High Definition true color 8” LCD Touch Screen
Embroidery Area 560mm x 360mm (22" x 14")
Thread Cutter No
Software Upgrade Yes
Wide Table Optional
Power 220V 150W
Weight 90 Kg
Warranty 1
Brochure Download Brochure
