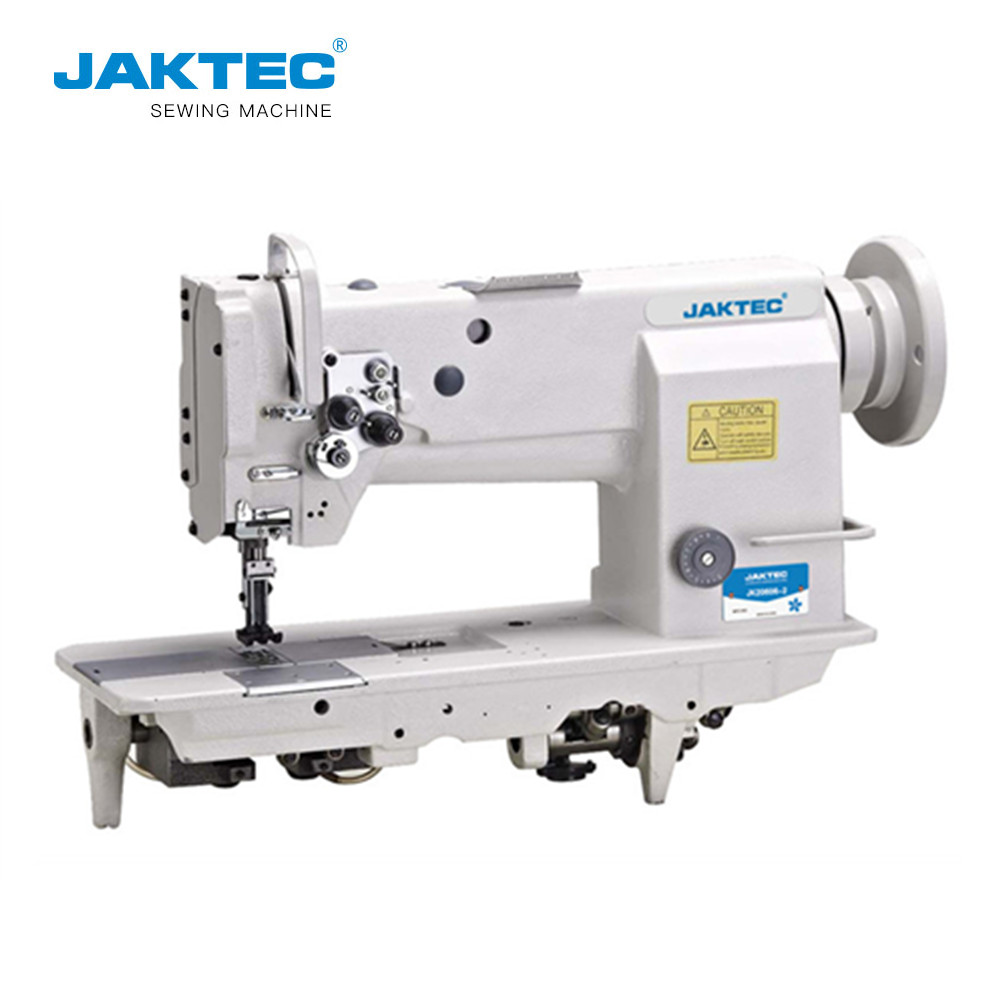

COMPOUND FEED LOCK STITCH SEWING MACHINE JK20606-2

This machine adopts one straight needle, vertical-axis roating hook with self-lubricating features for catching thread loops and sliding bar take-up to produce tow lines of double lockstitch. The needle bar can be engaged and disengaged mechanically and the arm shaft as well as hook shaft are supported by ball bearings.

Product Description

JK20606-2

Compound feed lockstitch sewing machine

JK20606-1 Single needle
JK20606-2 Double needle

SPECIAL FEATURES AND APPLICATIONS
1.This machine is designed with large vertical rotating hook for thread loop catching and sliding bars for
thread up-taking.
2.The application of needle bearings for arm shaft and hook shaft,cog belt driving,plunger pump lubrication and compound feed by needle bar,presser foot and feed dog provides this series with such splendle features as smooth running , quiet with a safe clutch to prevent the hooks from damage by over duty operation.
3.It is especially suitable in stitching car seat cushions , safety air bags,parachutes , etc.
4.Auto-set needle numble,Auto-set needle position, Auto-trimming,and other odes

Model name	JK20606
Application	Extra heavy-duty materal
Max. sewing speed	2000 sti/min
Max. stitch length	5 mm
Lift of the pressor foot	By hand: 8 mm; by knee: 16 mm
Needle type	DBX17
Lubrication	Automatic
N.W./G.W.	42/48 kgs
Measurement	0.13cbm

Detailed Images

• Needle Type - DBX17
• Lubrication - Automatic
• Stitch Length - 5mm

This machine adopts one straight needle, vertical-axis roating hook with self-lubricating features for catching thread loops and sliding bar take-up to produce tow lines of double lockstitch. The needle bar can be engaged and disengaged mechanically.
