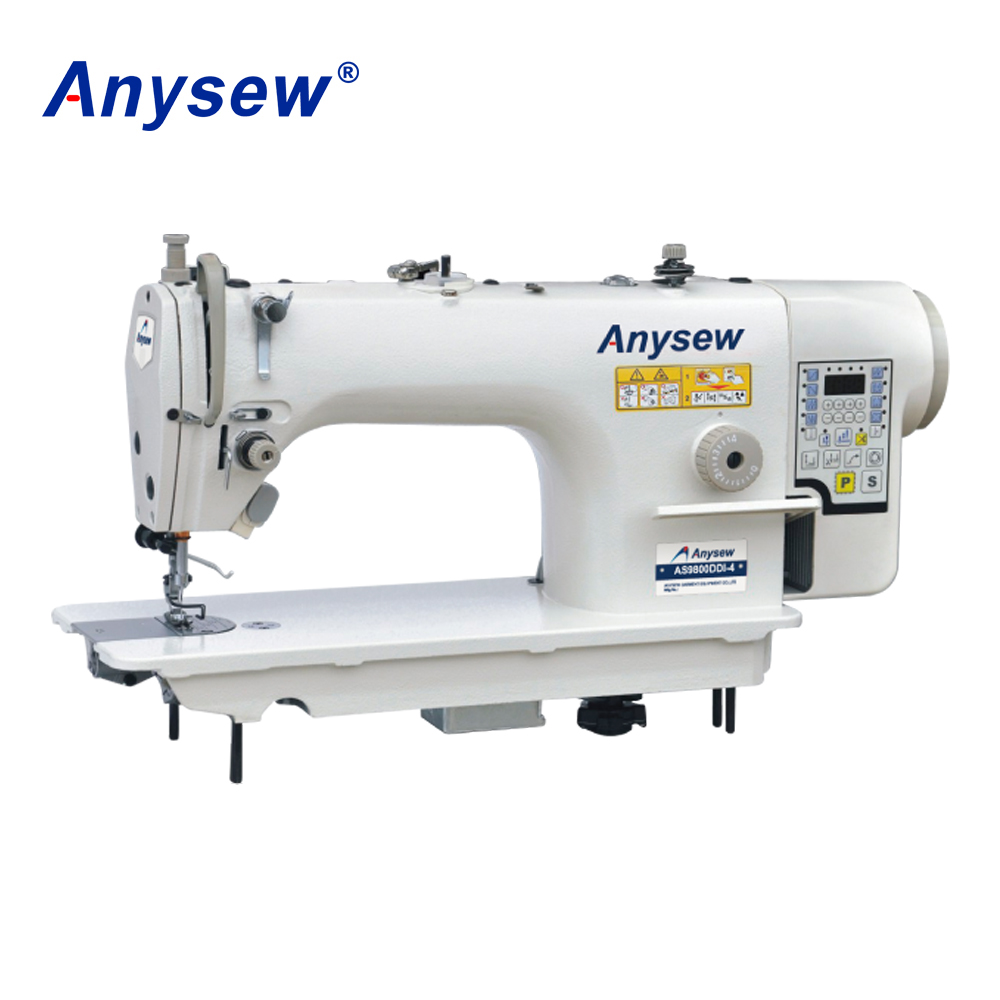

INDUSTRIAL COMPUTERIZED LOCKSTITCH MACHINE AS9800DDI-4

It is a Single Needle Lockstitch that uses Organ DBx1 Needles the same as 16x231. With up to 5500 Stitches Per Minute, Fully Automatic Lubrication. With servo motor, electronic thread tension controll...

Product Description

Computerized Direct Drive Lock-stitch Industrial Sewing Machine Automatic Machine

AS9800DDI-3: Auto trimmer, Auto-needle position, Auto-back revers.
AS9800DDI-4: Auto trimmer, Auto-needle position, Auto-back revers, Auto-lifting presser foot.

Model
AS9800DDI-4
Application
Light to medium-heavy materials
Max. speed
5000rpm
Lift of the presser foot
By hand: 5.5 mm; by knee: 13 mm
Needle
DBX1 9#-18#
Stitch length
0-5mm
Presser foot height
5.5-14mm
Lubrication
Automatic
Power
550w
Voltage
220v/50hz,110v/60hz

Main Features & Specifications

1) The most popular type; computerized with direct drive servo motor;
2) Automatic thread trimmer, automatic reverse stitch for strengthening.
3) Automatic foot lifter. automatic needle positioning;
4) Automatic needle positioning;
5) Programmable stitch numbers.

Detailed Images

  • Needle Type - DB 23
  • Lubrication - Automatic
  • Stitch Length - 5mm

It is a Single Needle Lockstitch that uses Organ DBx1 Needles the same as 16x231. With up to 5500 Stitches Per Minute, Fully Automatic Lubrication. With servo motor, electronic thread tension controller. Needle position exactly, trimming thread quick

Features Functions Overview
Model AS9800DDI-4
Hardware Type Metallic
Light Optional
Sewing Speed 4500sti/min
Needle Bar Stroke 1-59/64" 48mm
No of Stitch 1
Needle Type DB 23
Lubrication Automatic
Stitch Length 5mm
Bobbin Type Vertical
Stitch Per Inch 6sti/Inc
Thread Cutter Automatic
Power Servo Motor | 220V - 500W
LED Built-In
Knee Lifter Yes, Below Table
Speed Control Yes, Automatically from 10 - 370 Stitches Per Minute
Reverse Stitch Yes
Energy Saver Yes, 70% power cut
Material Type Fabric made of Cotton(Ankara), Flax, Wool, Ramie, Silk. Denim, Fur
Weight 42kg
Warranty 1
Brochure Download Brochure
